Name: BOX 50L
SKU: Box 55L
Availability: InStock

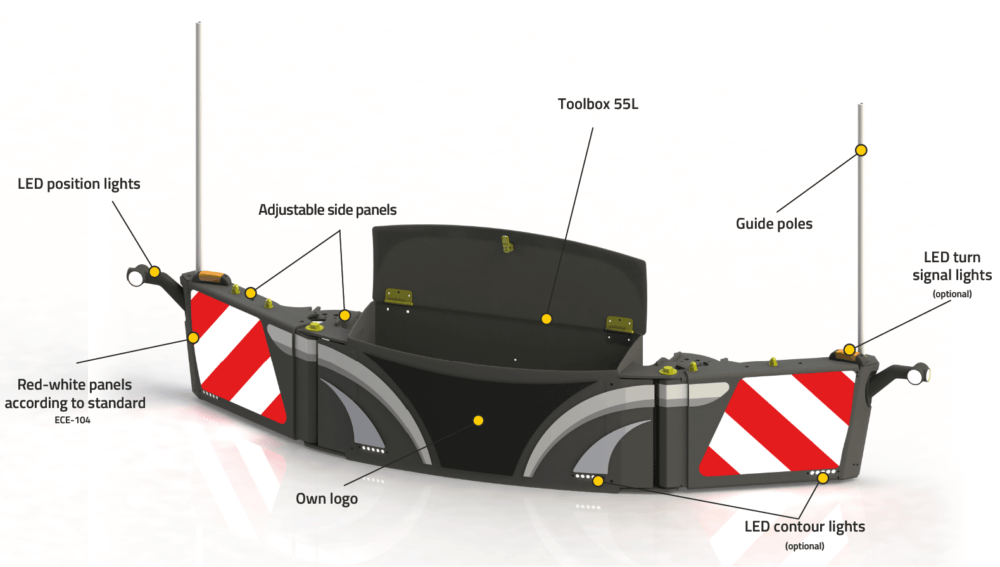

Standard features

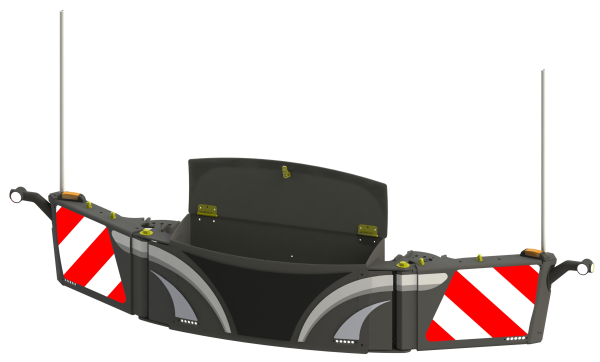

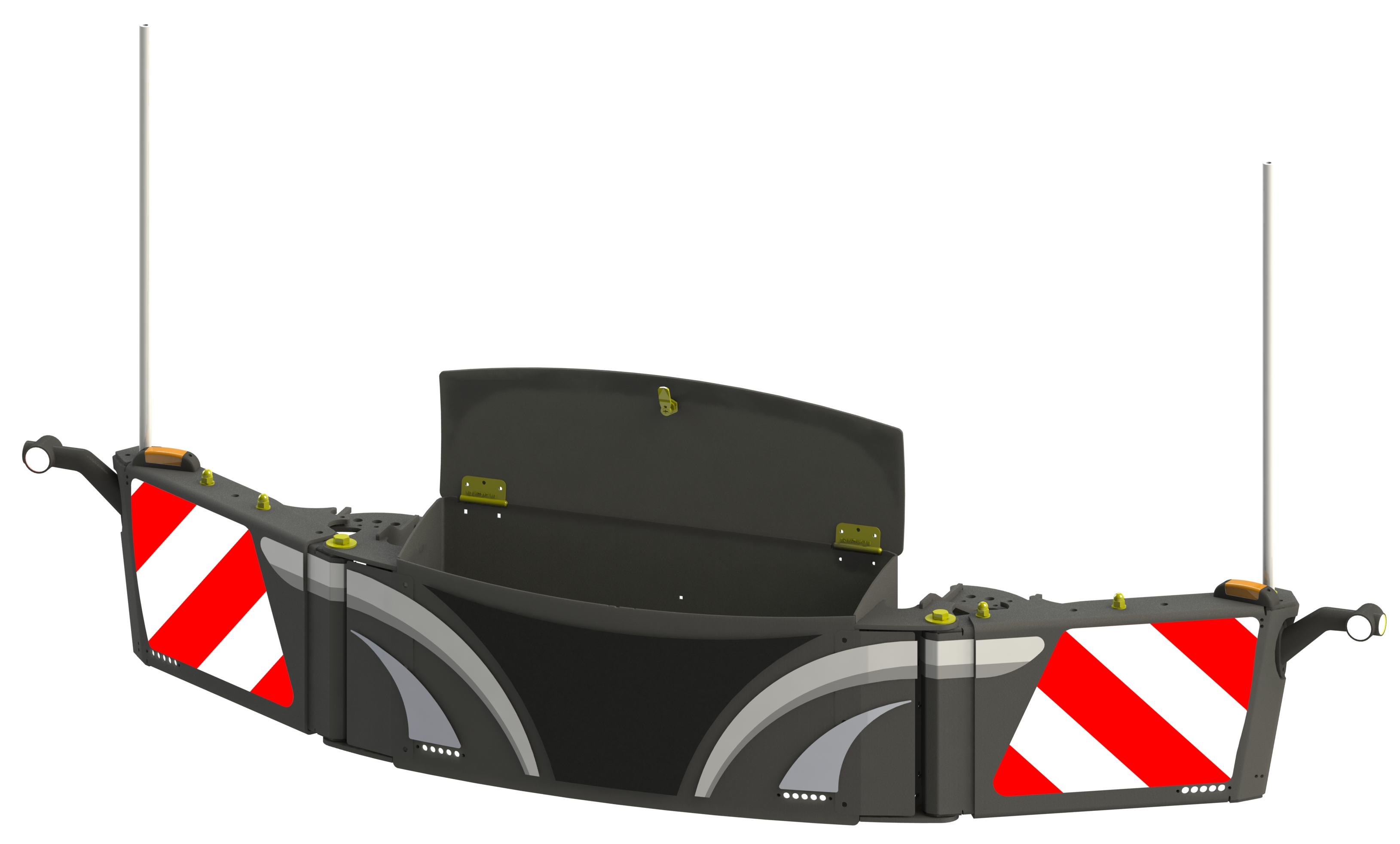

50L Storage box

Made to fit your toolbox.

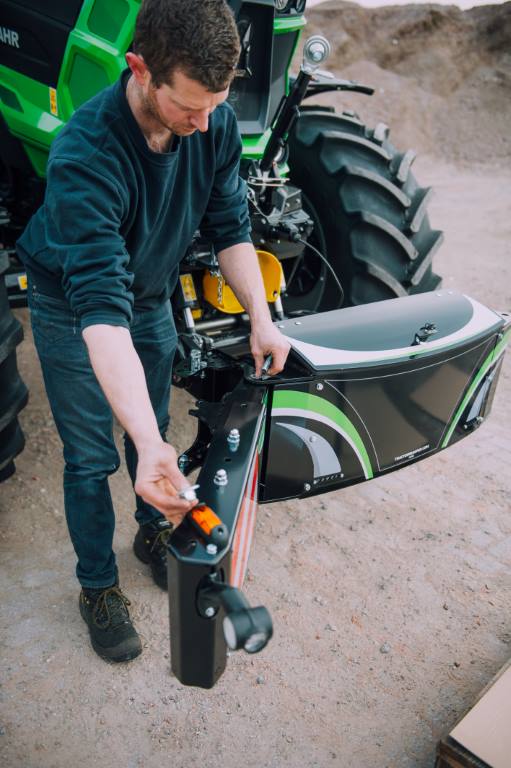

Adjustable side panels

Optimally adjustable for every tractor. It provides precise width indication, shielded front + side, and improved maneuverability.

Frontbumper mit Frontgewicht und Staubox

Shear bolt protection

Prevents damage when reversing into an obstacle.

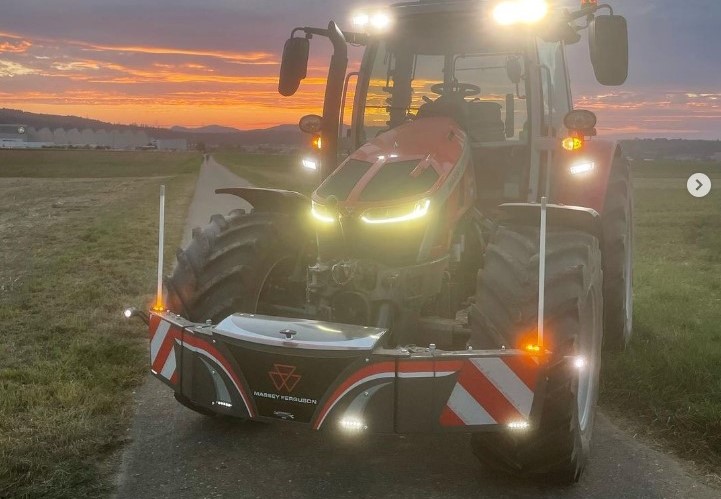

LED

LED width and contour lights and direction indicators as per legislation.

Tractor LED width lights and direction indicators

Warning panels

In the correct size and reflection class ECE-104.

Without frontlinkage

Also availible for tractors without frontlinkage.

CAT 1 fronthitch

The Box 50L model for CAT 1 fronthitch

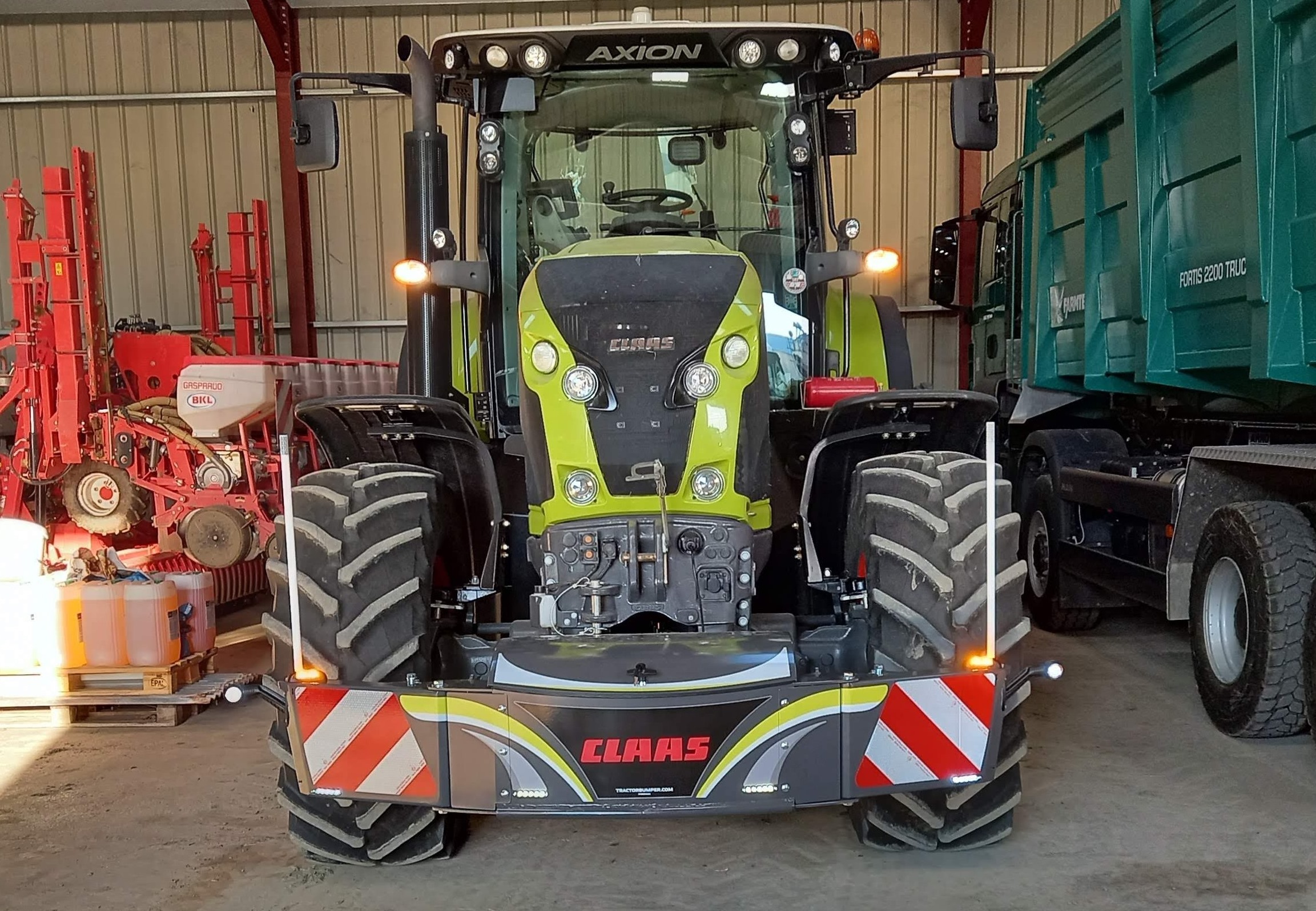

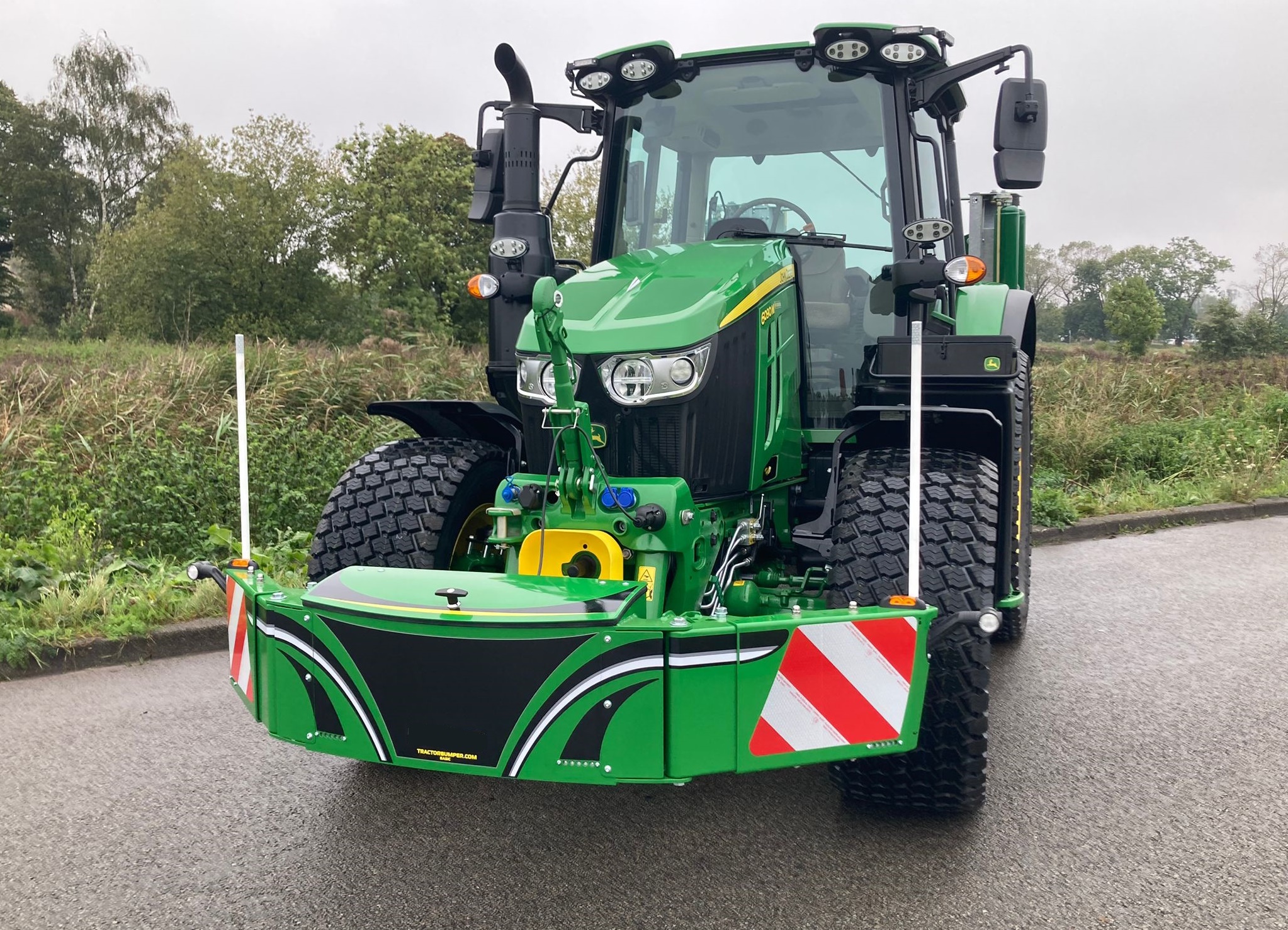

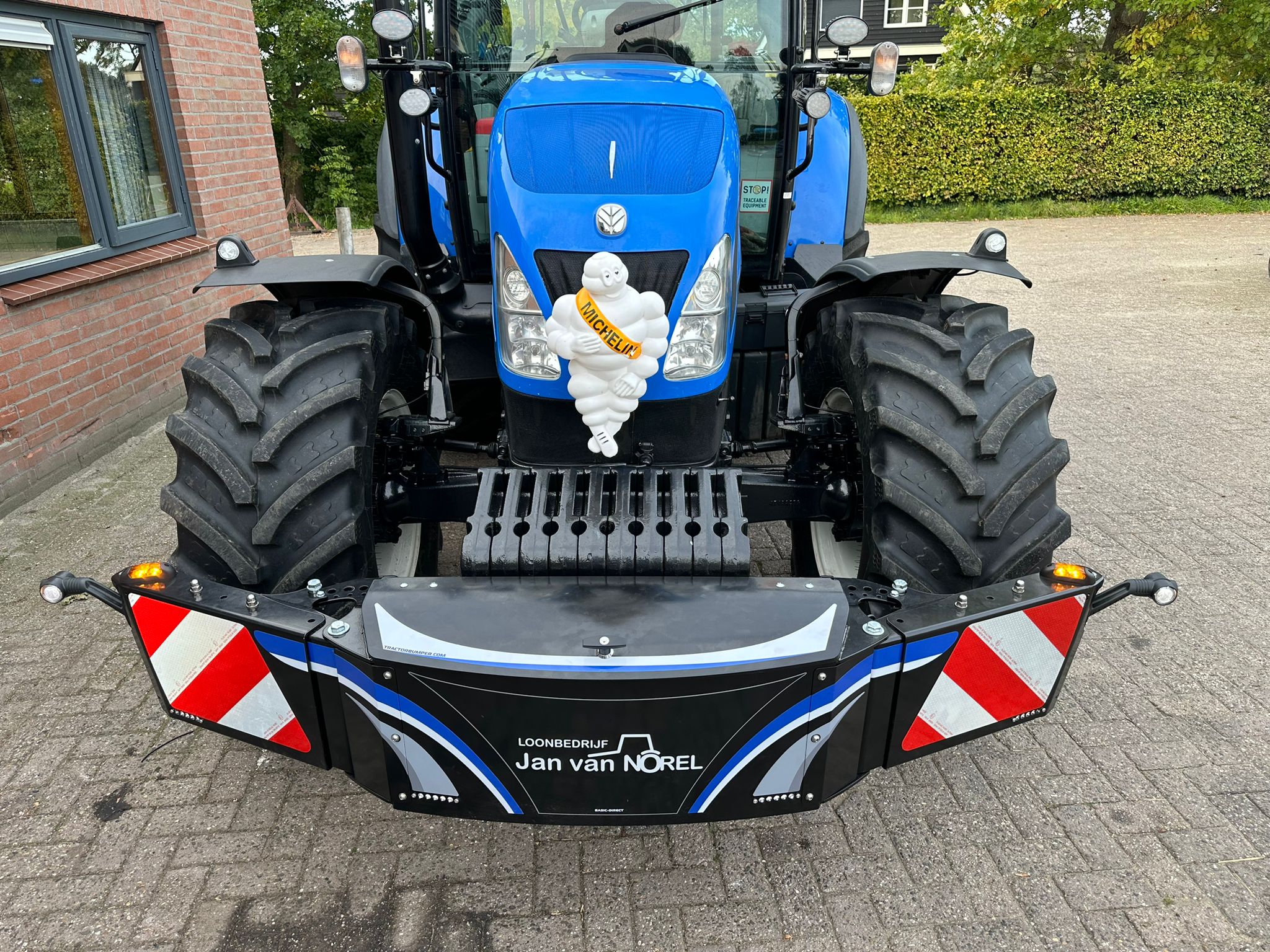

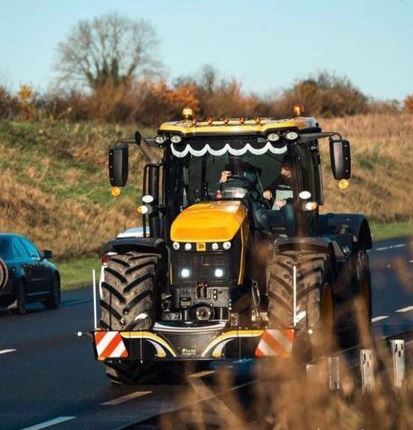

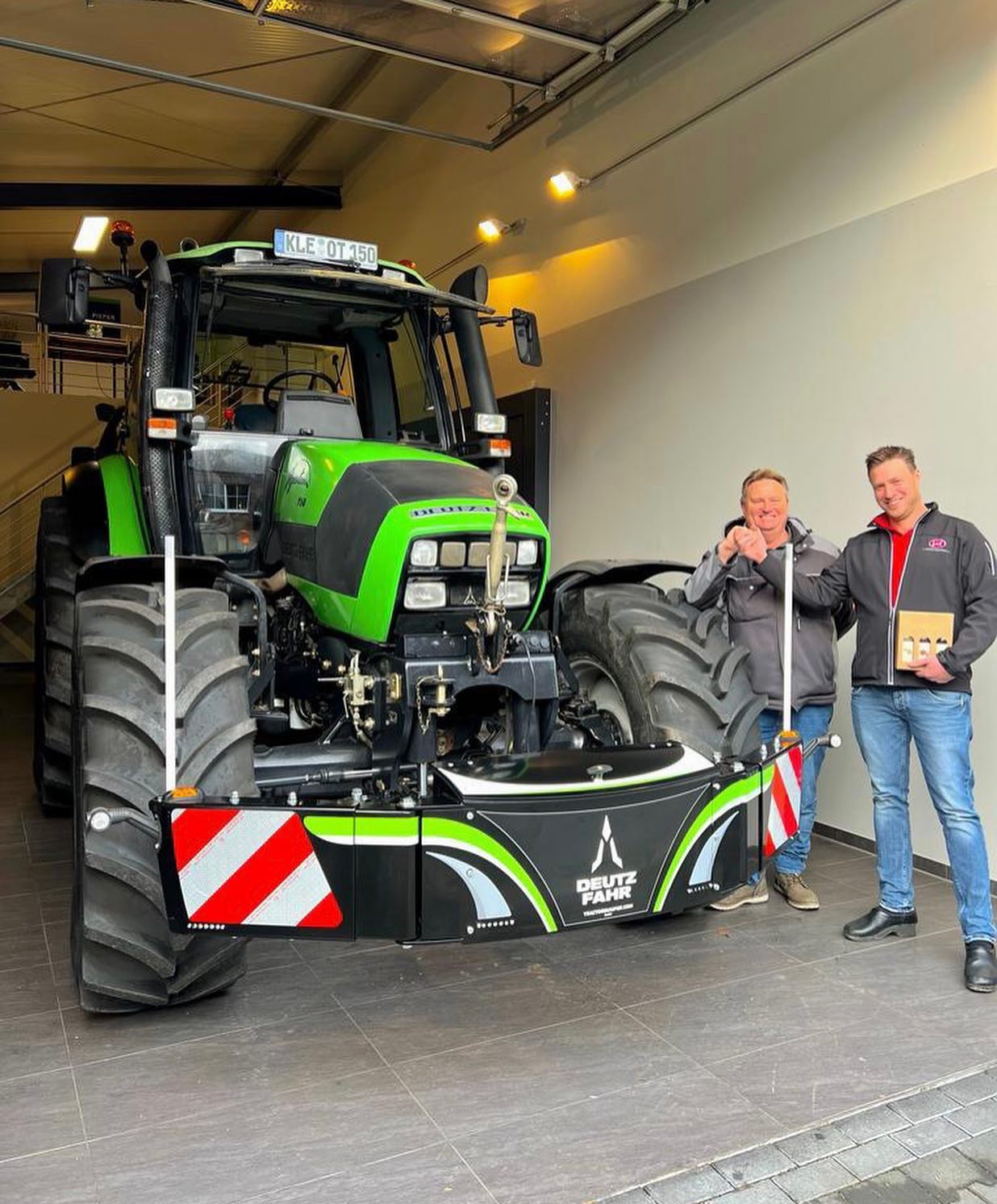

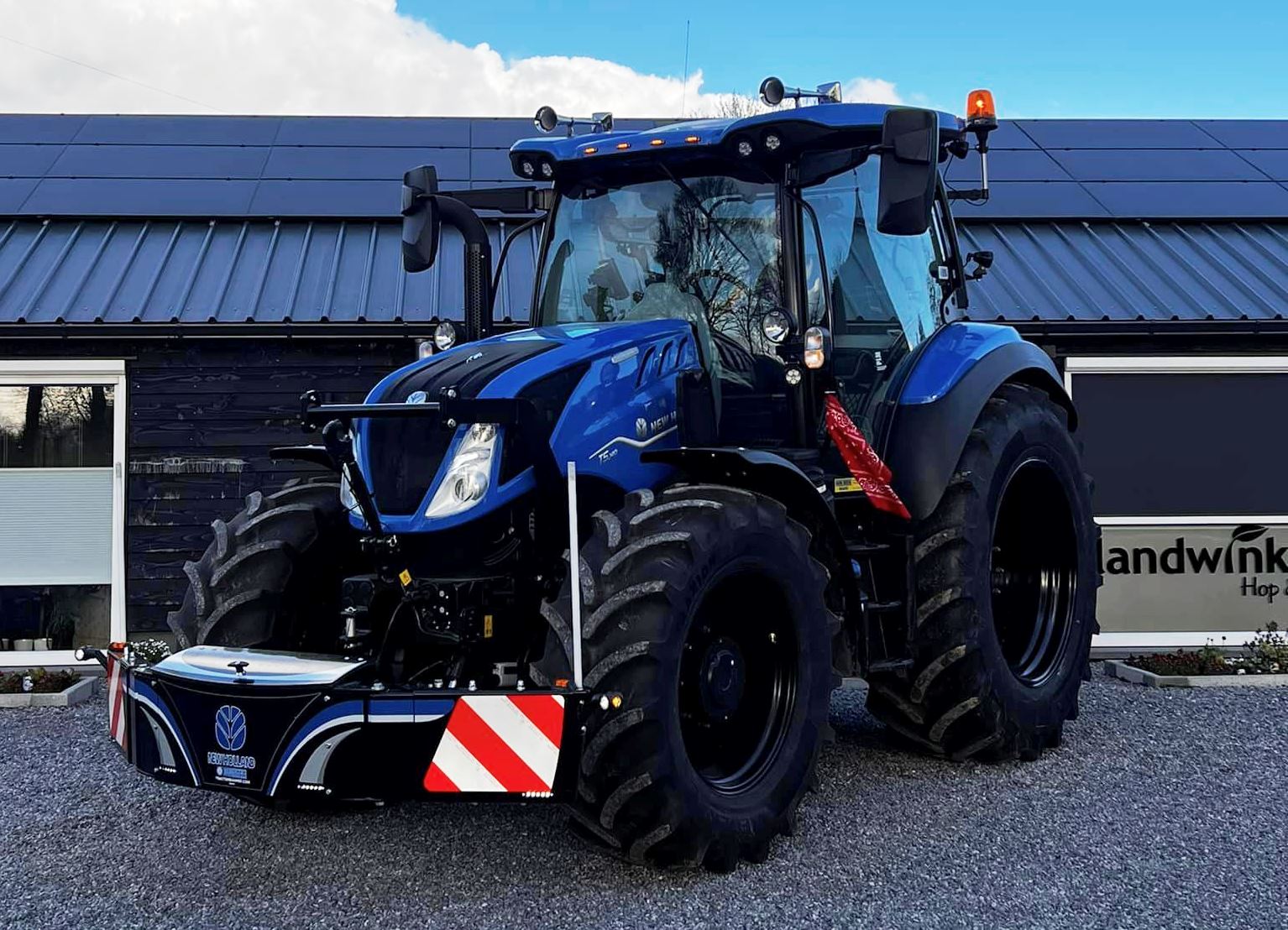

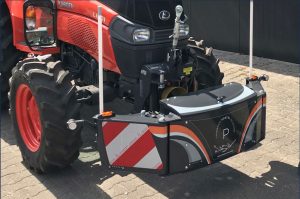

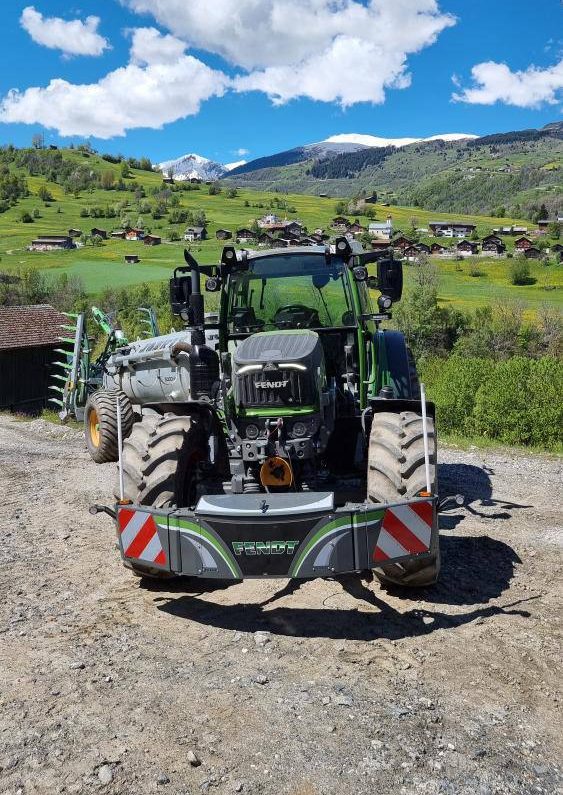

Photo’s BOX 50L

Frequently Asked Questions BOX 50L

Where can i buy the BOX 50L bumper?

1) Find one of our dealers here:

2) Buy directly in our webshop

3) Contact your local dealer

Why a TractorBumper?

We combine the following features into one design:

Safety: enhanced (width) lighting + protection of the front wheels
Practical use: front weight + integrated storage box
Design: in the colors of your tractor with your own logo.

What exactly do you hold a patent on?

We hold a patent on the hinged side panels. These can be locked in various positions and can rotate completely forward. Patent number EP2815928 A1. Click here for the patent. View the unique features here.

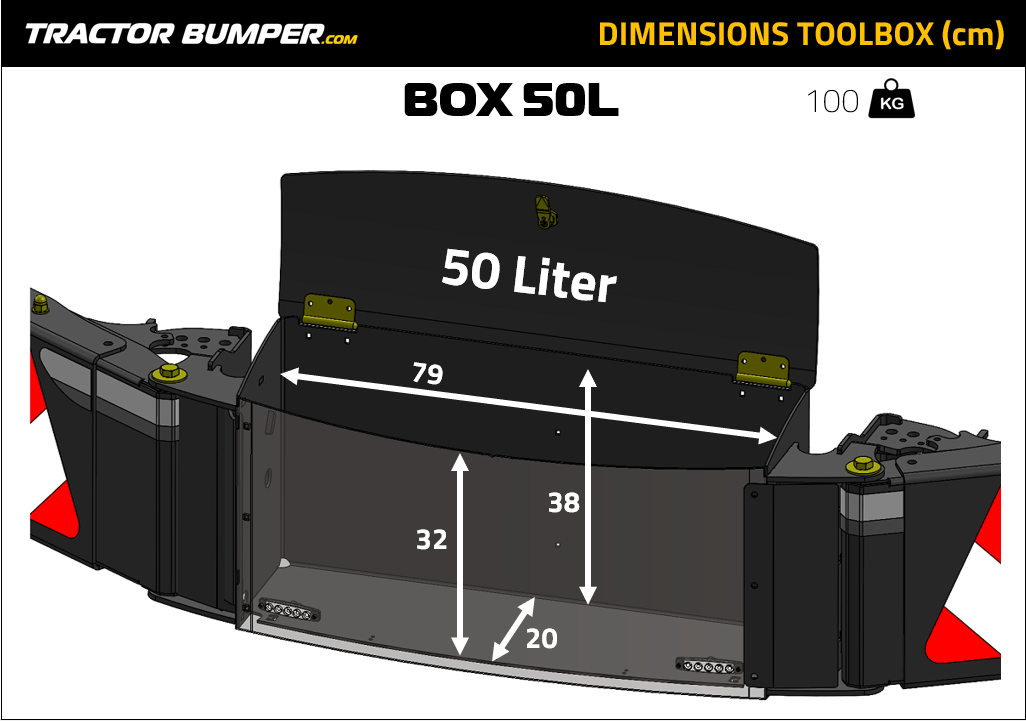

How big is the storage box of the BOX 50L bumper?

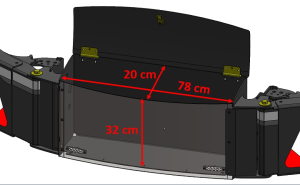

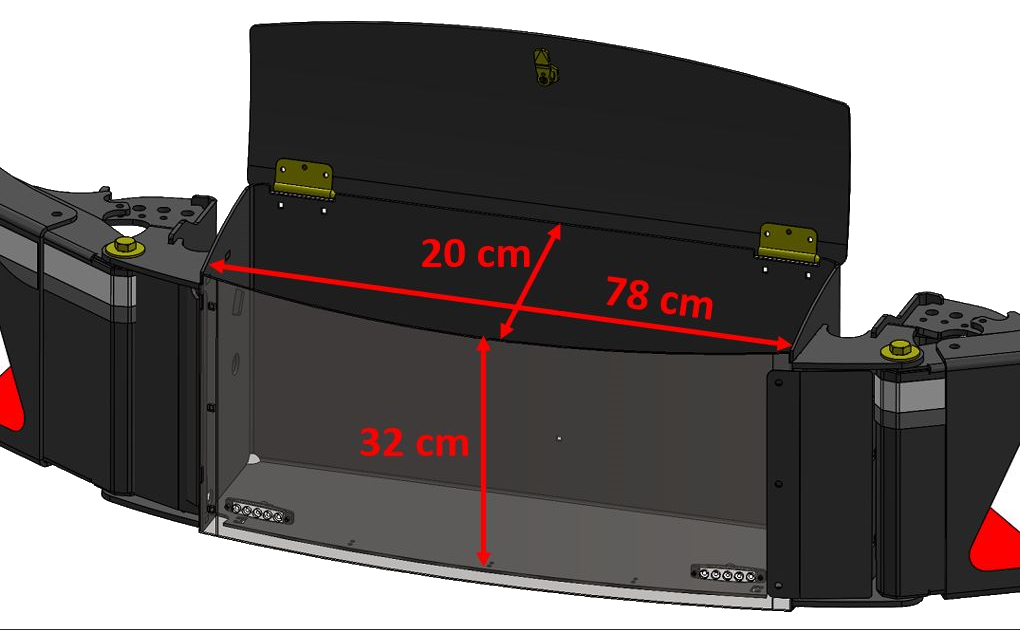

The BOX 50L has a storage box of 50 liters. 78 cm wide, 32 cm high and 20 cm deep.

What is the minimum and maximium width for the Box 50L bumper?

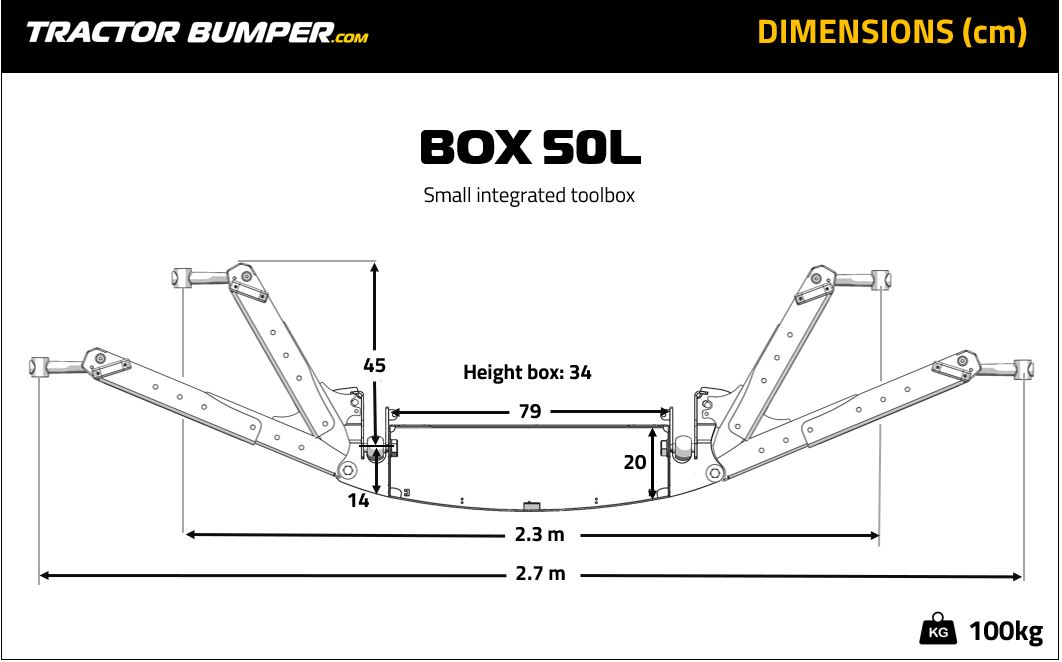

With standard side parts, the width can be adjusted from 2 meters to 2.7 meter. Optionally (at no extra cost) very short side parts are possible. The width is then approx. 1.8 meters.

What is the distance between linkage ball and front side Box 50L bumper?

Dimension between linkage ball and front side Box 50L is 14 cm.

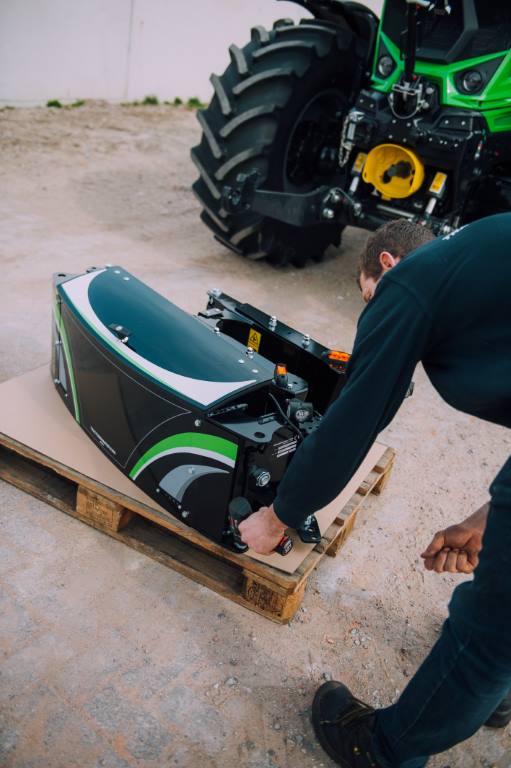

How will the Box 50L bumper be delivered?

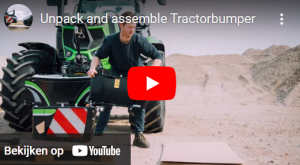

The Box 50L bumper is packed compact on a EUR pallet. First connect the middle frame with the front linkage and then mount the side panels, see the video:

How is the Box 50L bumper connected on the fronthitch and how is disconnecting working?

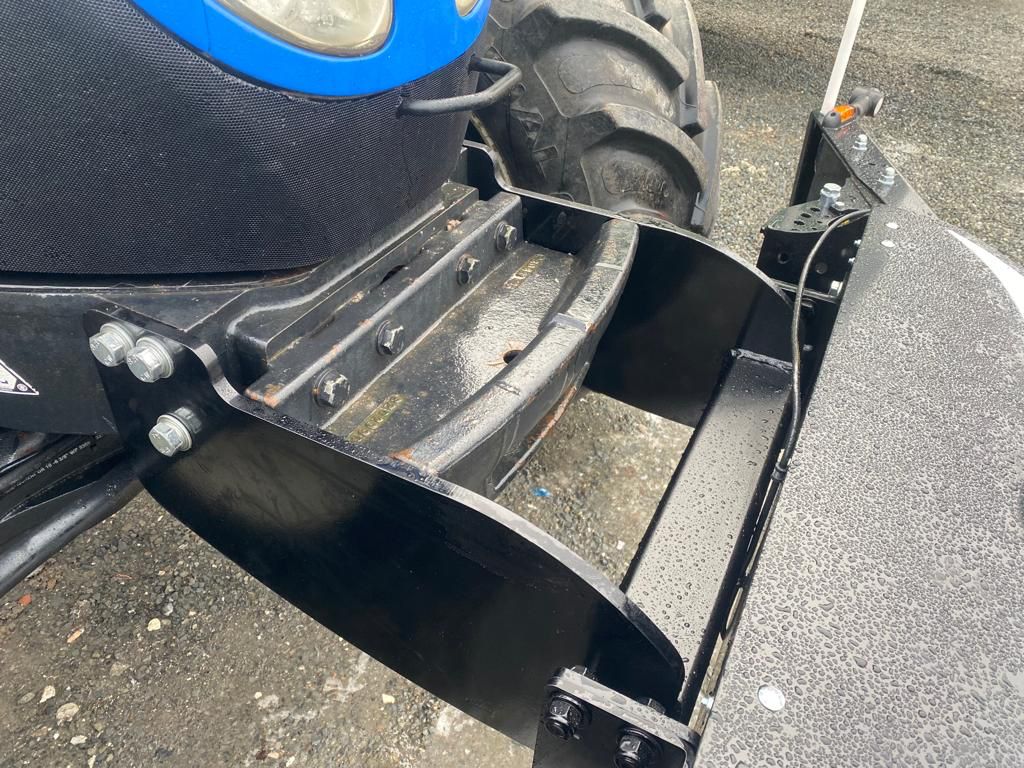

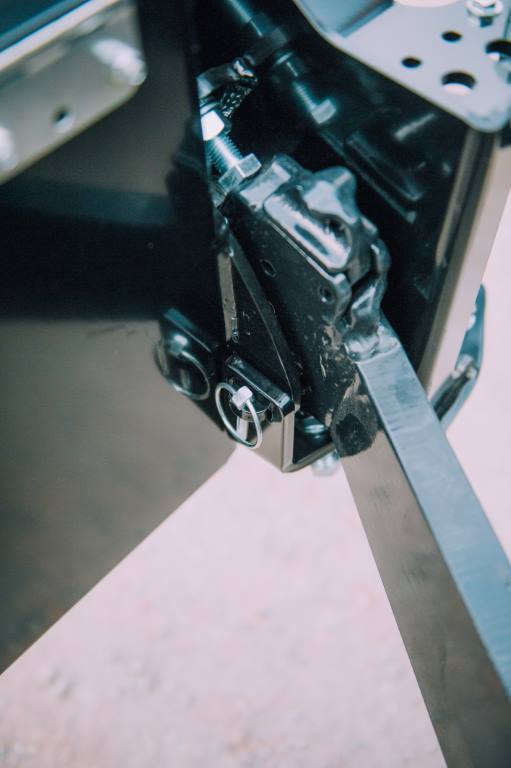

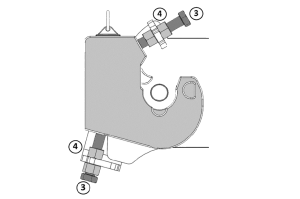

The bumper has no top link connection, but is secured in the lower link arm with 2 bolts, see:

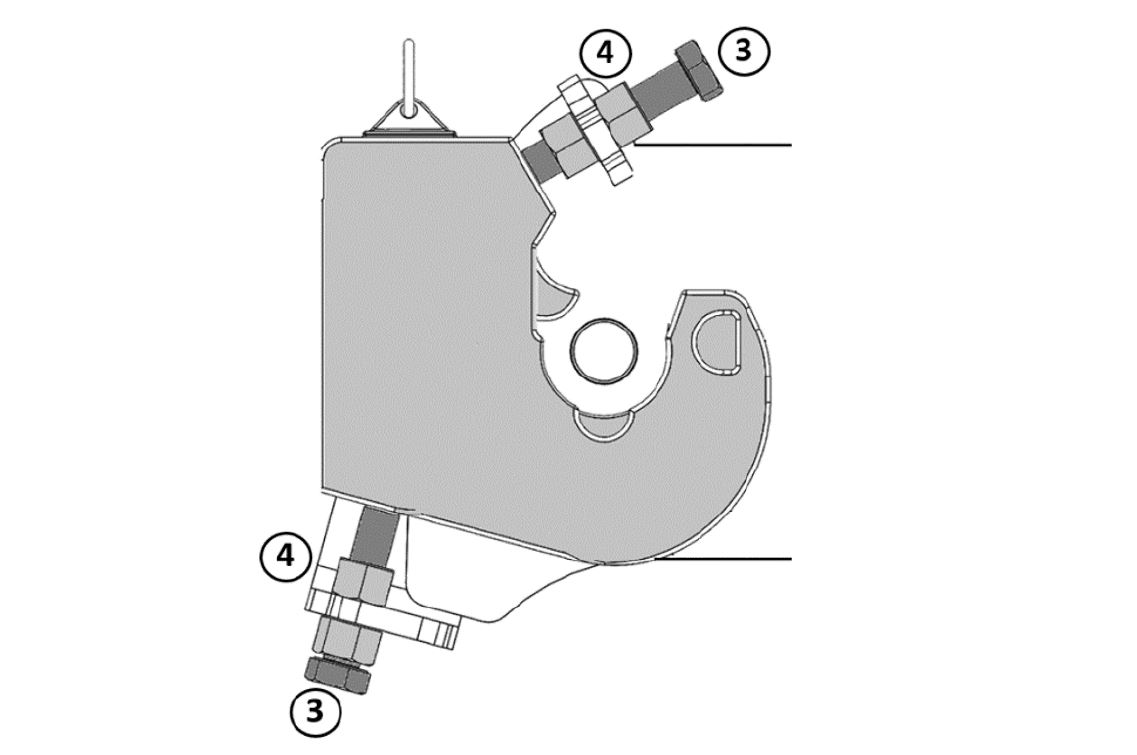

The bumper has no toplink and is only connected in the lower link arms. Because of the two bolts, it can not rotate.

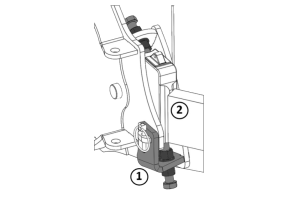

Disconnect is easy by loosening the lower support (1) with a split pin. after that, the fronthitch (2) can be easily go down for uncoupling.

What is the weight of the Box 50L bumper?

The total weight of the Box 50L bumper is 100 kg.

I don't have a front linkage, can I mount a bumper?

We have a Box 50L variant which is for tractors without a front linkage.

The bumper is fully painted and complete with LED and stickers. Unpainted steel flange plates are added (red colour). Connection from flange plate to tractor chassis must be made by yourself (color yellow). Bumper weight is 100kg.

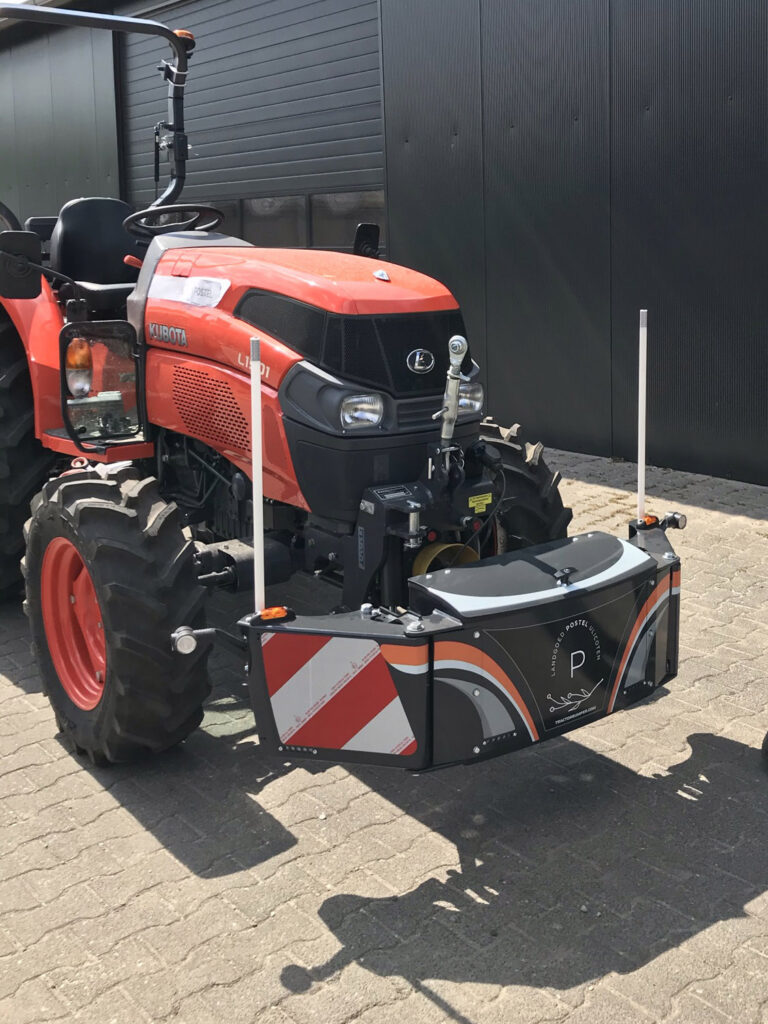

How does the Category 1 bumper look like?

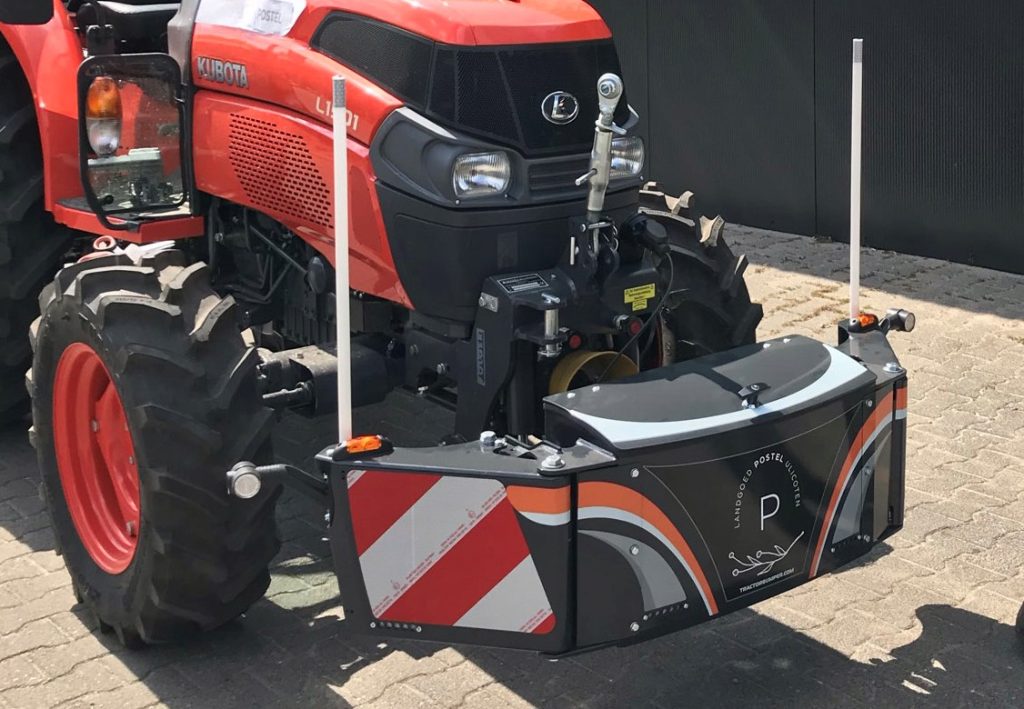

Here is a Box 50L variant for small tractors with a Cat. 1 frontlinkage. This is equipped with very short side parts so that the smallest position is 1.6 meter in width. Bumper weight is 90kg.

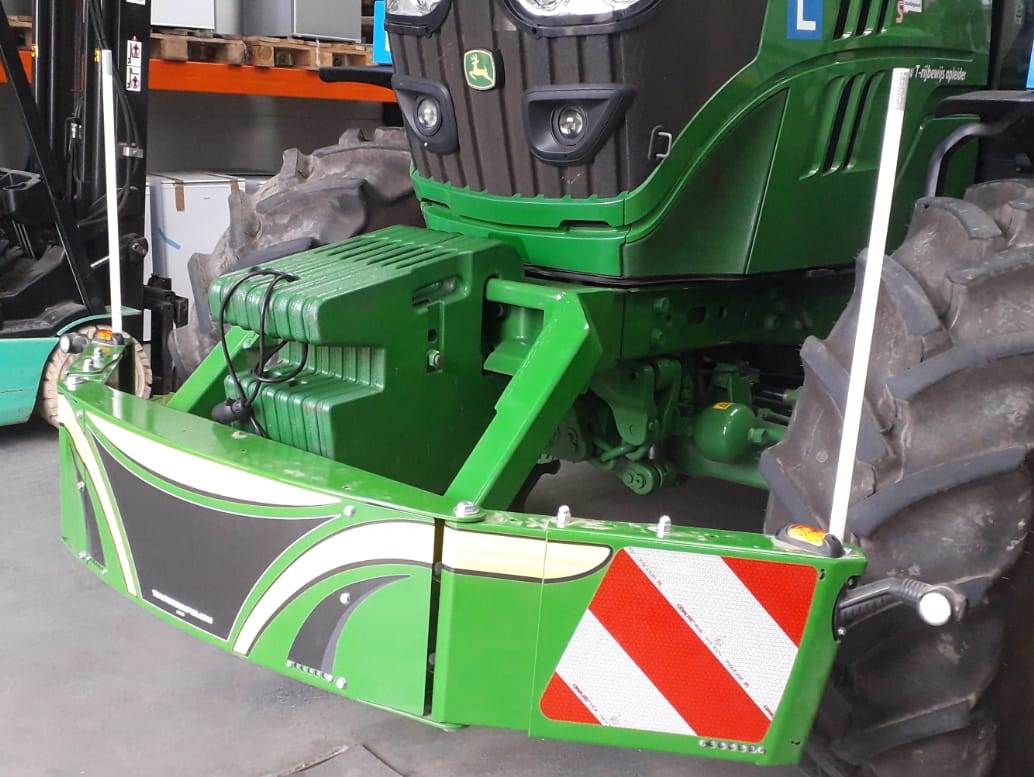

Can additional weight be added to the BOX 50L bumper?

The BOX 50L bumper does not have a top link, making it less stable with heavy weight. Optional additional weight is available, up to 200 kg. Guideline price: €4 per kilogram. Ask about the available options.

Is a tractorBumper required by law?

No, a tractor bumper is not mandatory in any country.

Does the bumper work in practice?

A few of accidents have now been reported in which the TractorBumper has undoubtedly limited the consequences.

Can I get a subsidy for a tractor bumper?

Only subsidy in possible in Belgium, callled “VLIF”. According to our data, subsidy is not possible in all other countries
